exclude PS1 filters not covered by PFS spectra in the focal plane fitting

    XMLWordPrintable

    Details

    • Type: Task
    • Status: Done (View Workflow)
    • Priority: Normal
    • Resolution: Done
    • Affects Version/s: None
    • Fix Version/s: None
    • Component/s: None

      Description

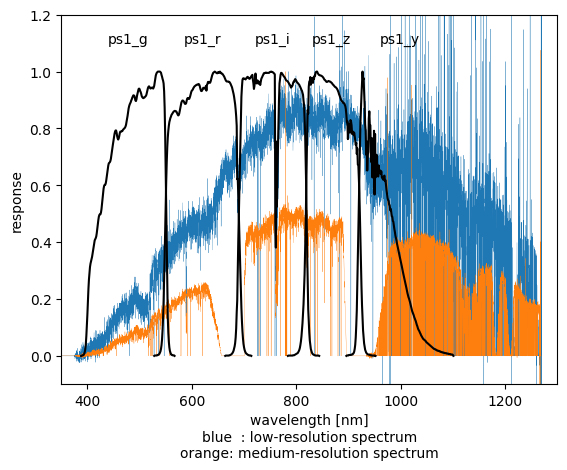

      The flux calibration in run15/20240328 is very bad. The focal plane variation correction is not working very well and I suspect at least part of the problem is due to the missing arms; we were missing n1, b3, and n4 in the March 2024 run (run15). The plot attached here illustrates that we cannot compute synthetic magnitudes in the g and r-bands when we are missing the b-arm, and y-band when we are missing the n-arm. These filters have to be excluded from the focal plane fitting. We do not have a record of missing arms in pfsConfig, and we may have to infer missing arms from the data.

        Attachments

        1. filtecoverage.png
          81 kB

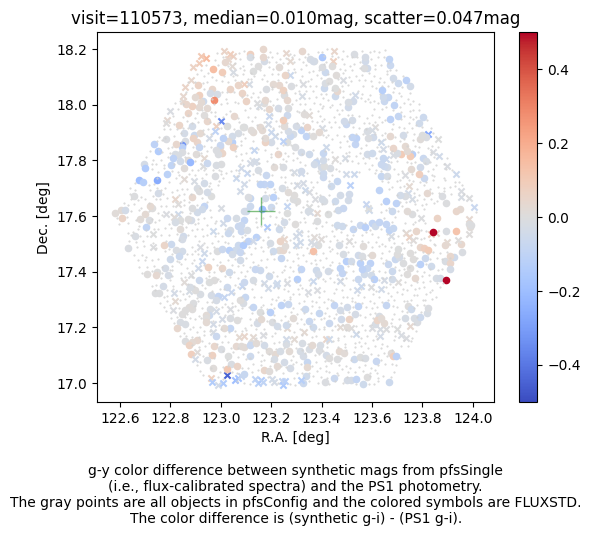

        2. gicolorMRNew.png
          135 kB
        3. gicolorMROld.png
          110 kB

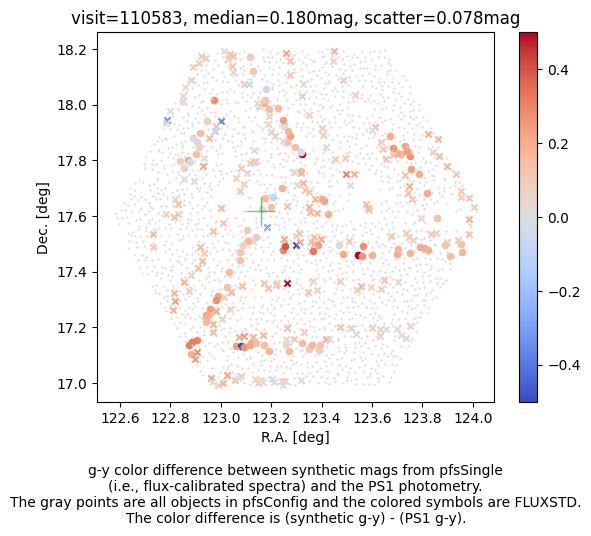

        4. gycolorLRNew.png
          108 kB

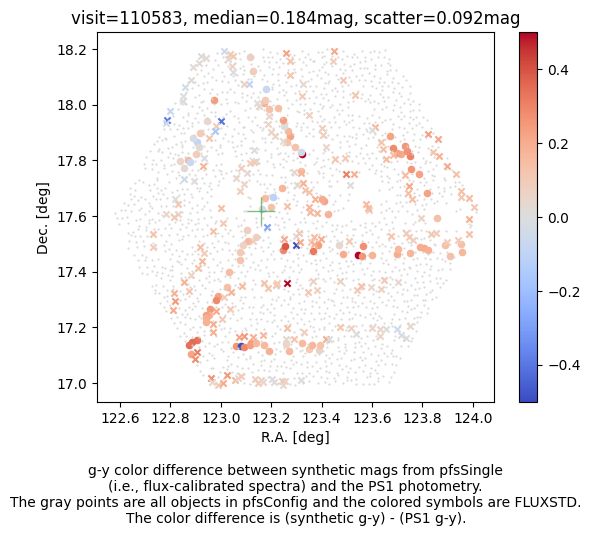

        5. gycolorLROld.png
          109 kB

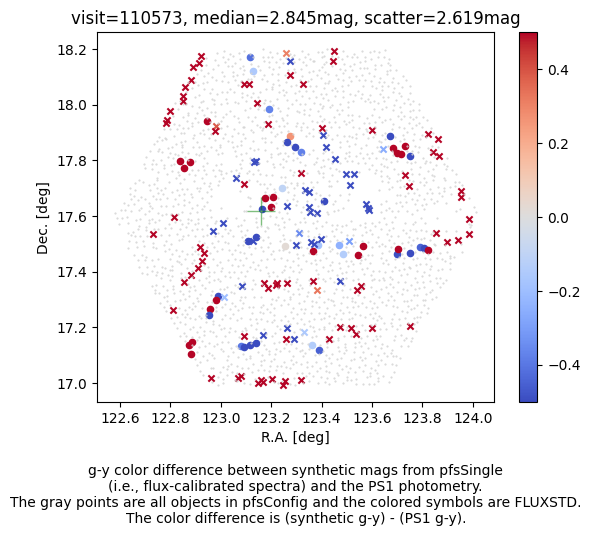

        6. gycolorMRNew.png
          85 kB

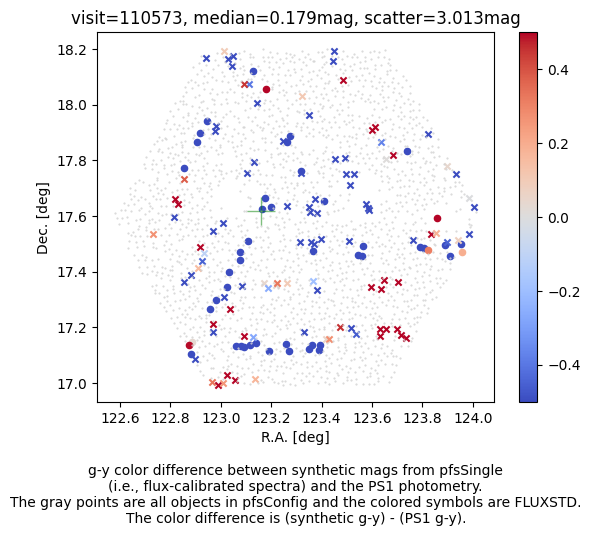

        7. gycolorMROld.png
          85 kB
        8. imagLRNew.png
          130 kB

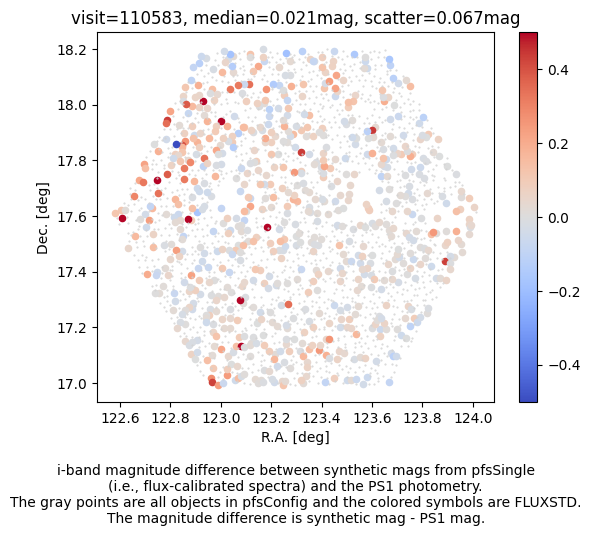

        9. imagLROld.png
          130 kB
        10. imagLROld.png
          130 kB

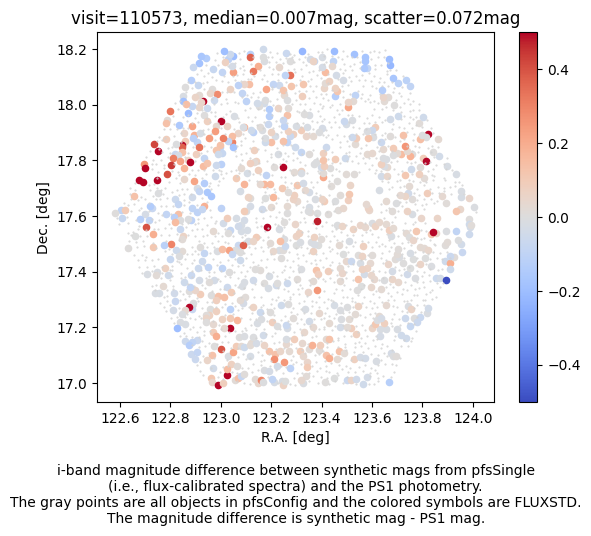

        11. imagMRNew.png
          131 kB
        12. imagMROld.png
          111 kB

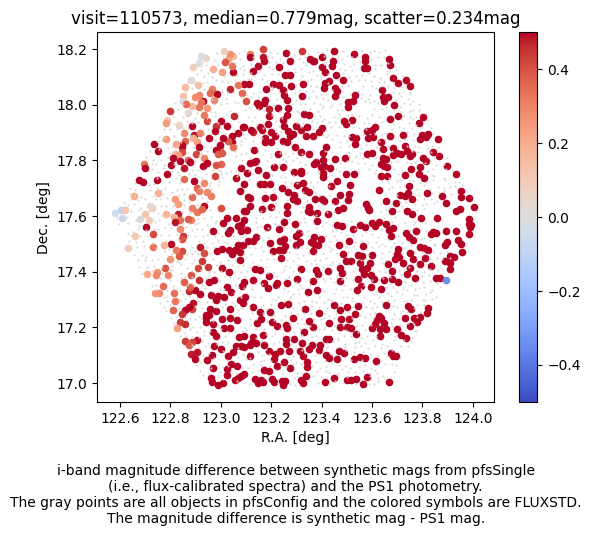

        13. imagMROld.png
          111 kB

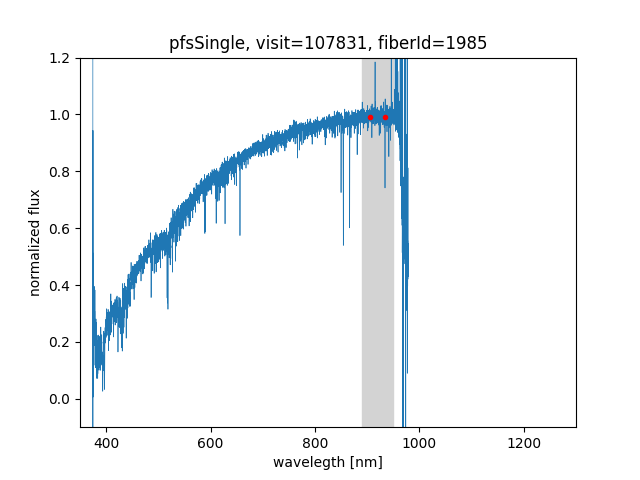

        14. LR3.png
          30 kB

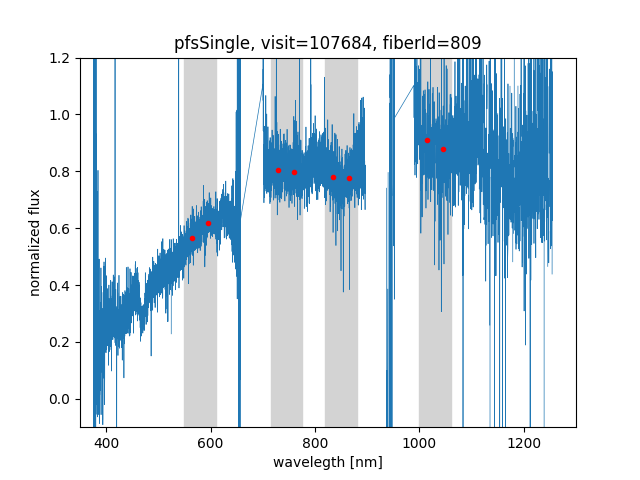

        15. MR4.png
          40 kB

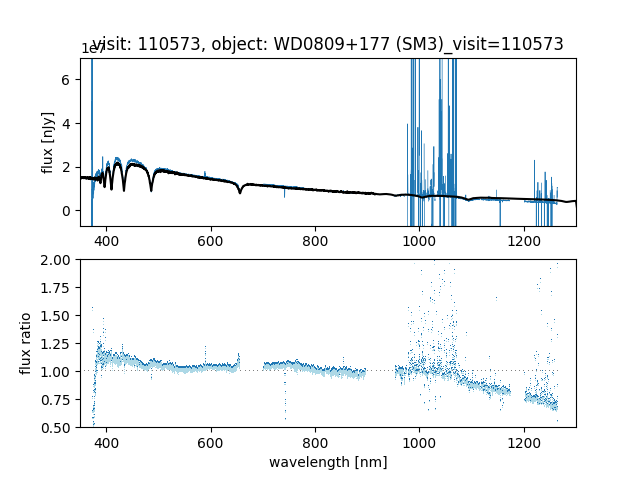

        16. WD0809+177_SM3_visit=110573NEW.png
          42 kB

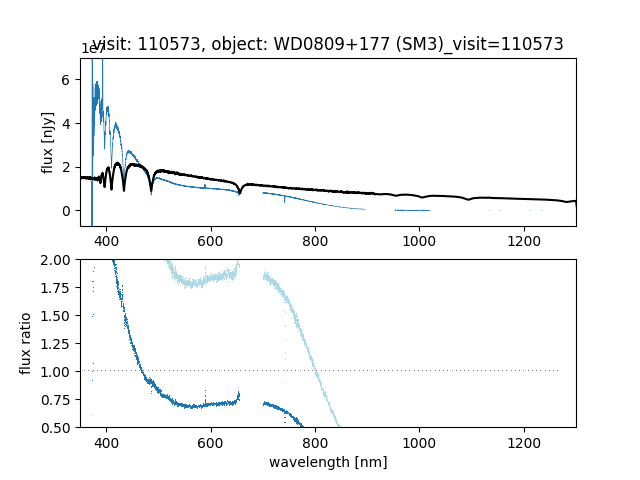

        17. WD0809+177_SM3_visit=110573OLD.png
          37 kB
        18. WD0809+177_SM3_visit=110583NEW.png
          40 kB

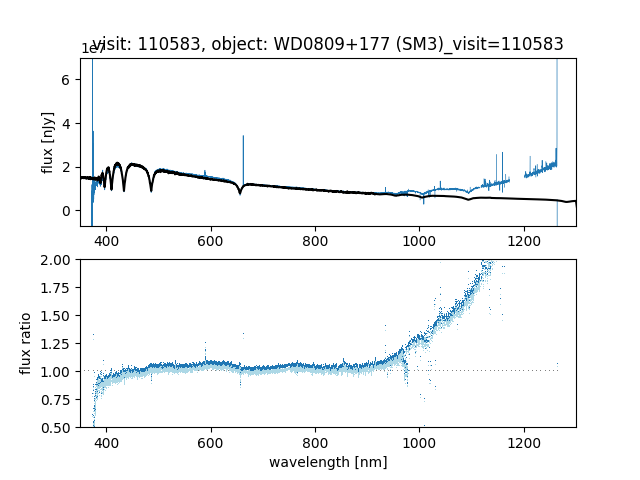

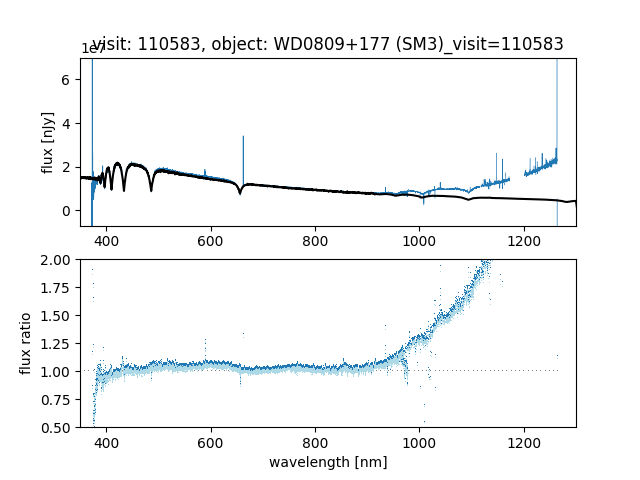

        19. WD0809+177_SM3_visit=110583OLD.png
          40 kB
