From Slack (auto-guiding channel):
The value at which the CCD bleeds isn't totally stable – it's not like the 65535 which you get from a value larger than the maximum value you can store in an unsigned 16-bit value [from a 16-bit A/D converter]
# determine saturation off the unprocessed data satFlag = data[result['peak_pixel_y_pix'],result['peak_pixel_x_pix']]==satValue result['flags'] += satFlag*4

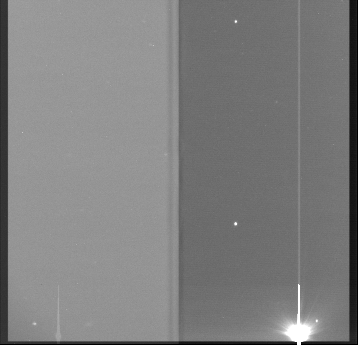

E.g. here's the centre of a saturated star in pfs_visit_id, agc_exposure_id = 125713, 699879; AG2
[[ 3632., 3738., 3820., 3646., 3429., 3165., 2996., 2653.],{{ }}
[ 5054., 5299., 5217., 5032., 4582., 4245., 3829., 3323.],{{ }}
[ 7811., 8110., 7855., 7411., 6788., 5878., 4967., 4116.], [13237., 29523., 29500., 12164., 10477., 8915., 7183., 5435.], [40880., 59682., 59352., 52460., 17490., 14037., 10655., 7630.], [59490., 59730., 59750., 59638., 56759., 22897., 16250., 10798.], [59700., 59729., 59748., 59769., 59425., 38507., 24197., 14974.], [59625., 59711., 59788., 59709., 59799., 59059., 34645., 20425.], [59588., 59764., 59808., 59826., 59884., 59644., 46327., 26123.], [59755., 59828., 59815., 59904., 59866., 59838., 54580., 30783.], [59652., 59800., 59832., 59882., 59826., 59851., 57338., 32382.], [59565., 59698., 59798., 59796., 59823., 59669., 52013., 29442.], [59455., 59730., 59738., 59840., 59806., 59368., 40194., 23795.], [36483., 59665., 59743., 59818., 59735., 58673., 27015., 17022.], [16849., 38153., 59521., 59688., 59093., 22821., 16808., 11501.], [10650., 13025., 17129., 38198., 30490., 12851., 10213., 7708.],
The right side should be like
data[result['peak_pixel_y_pix'],result['peak_pixel_x_pix']] >= satVal

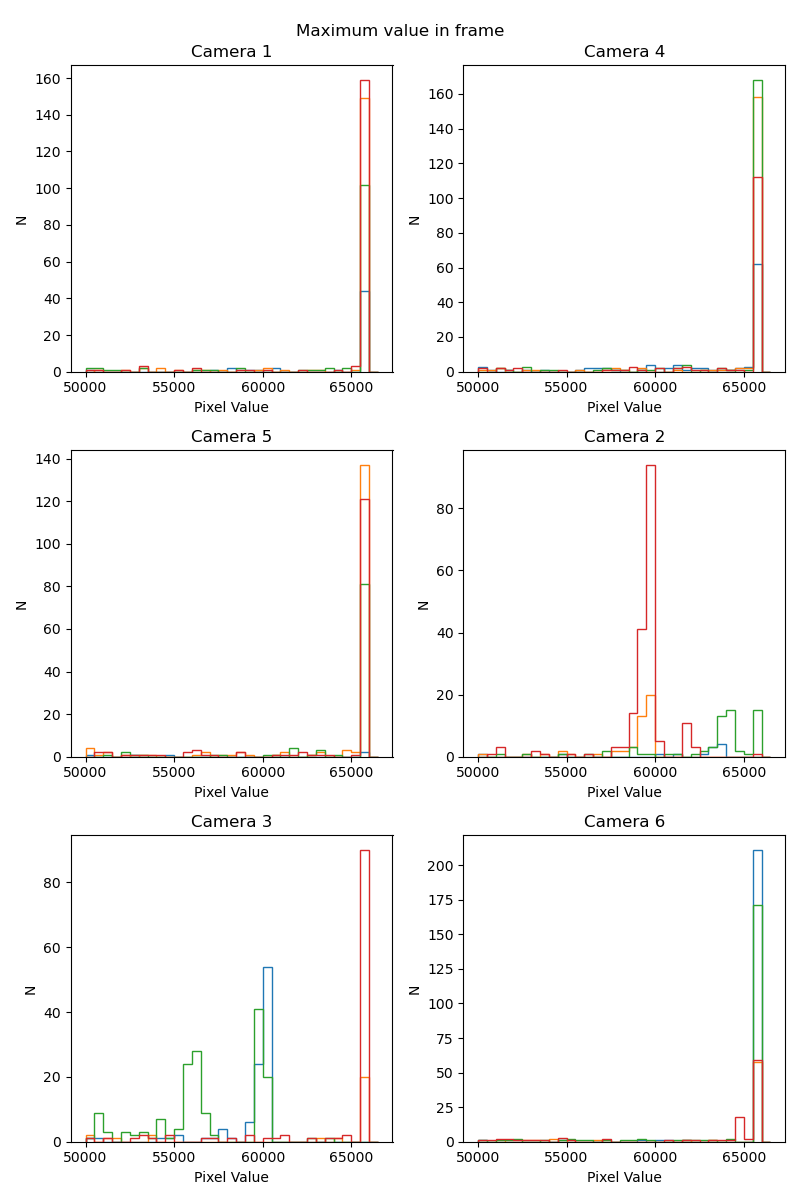

And satVal should be different among AG camera, channel. So there should be 12 values.
